LED Court Lighting Designed Specifically for Racquetball and Squash Courts

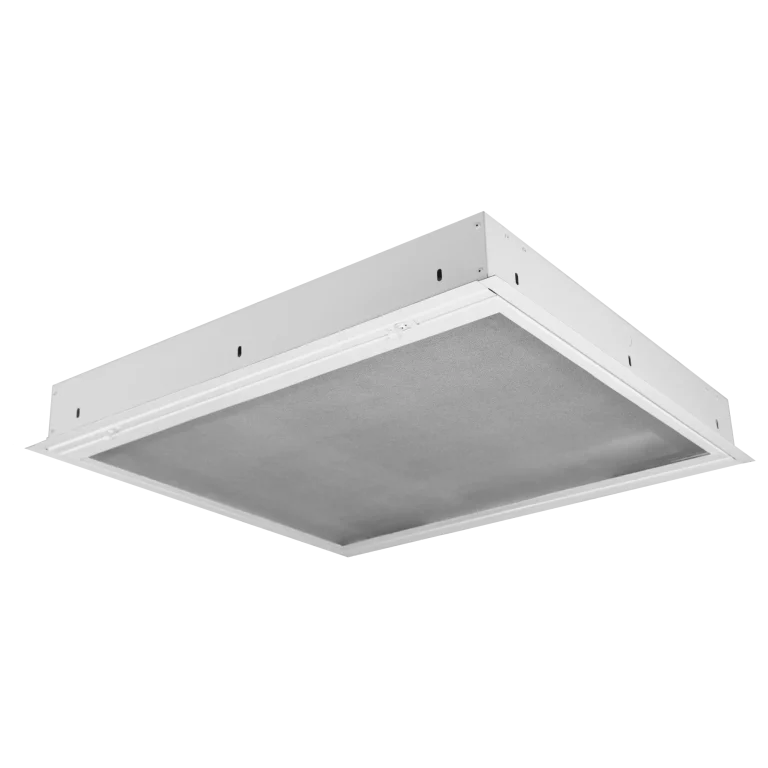

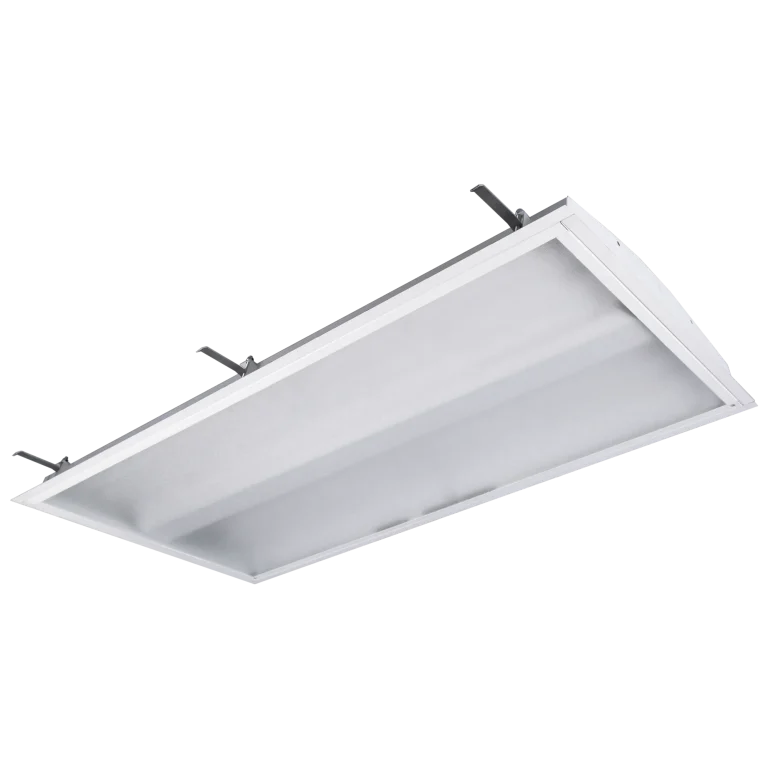

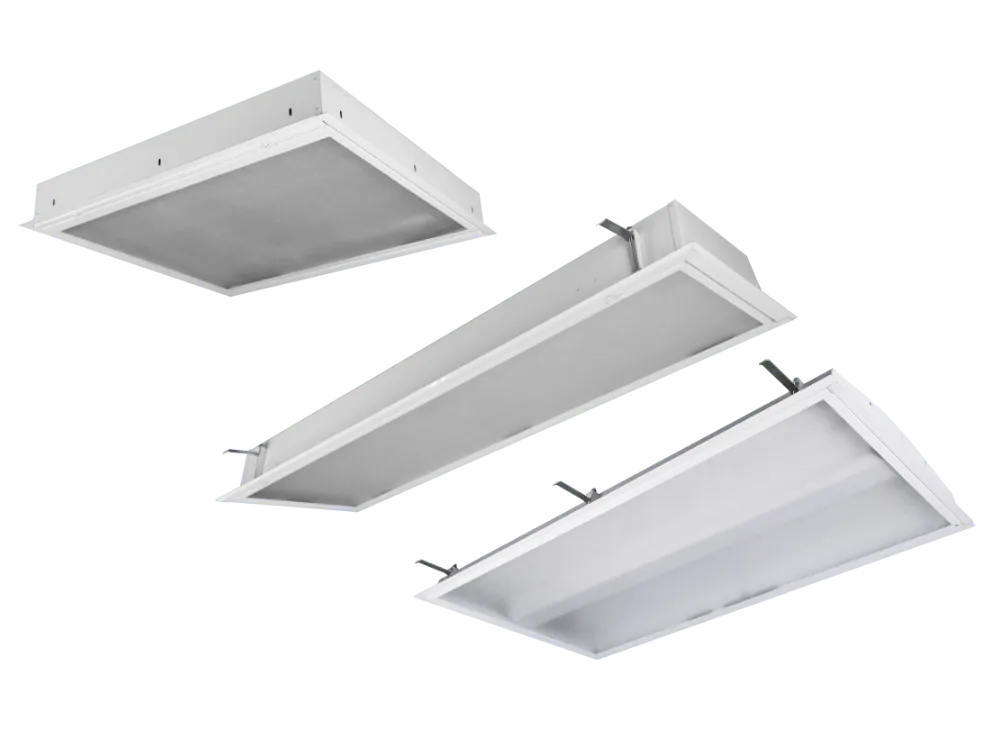

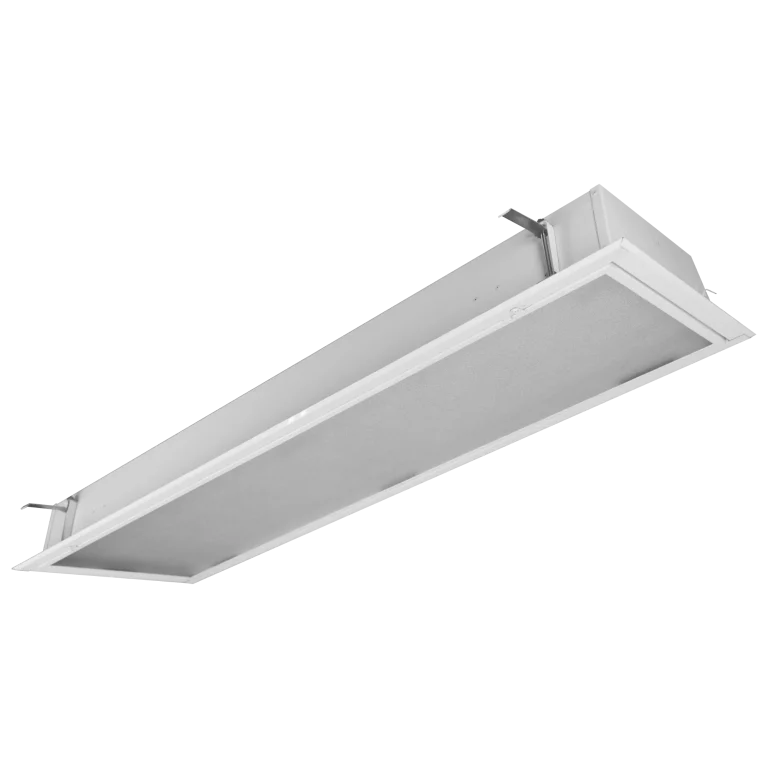

1st Source LED racquetball court lighting fixtures have a rated life of 100,000 hours while offering dramatic energy savings, lower maintenance, and higher efficiency over HID lighting. Available in 1×4, 2×2 and 2×4 housings in a wide variety of low wattage, high lumen packages. All of our racquetball lighting fixtures are manufactured in the USA and carry a 5 year product warranty.
Designed specifically for racquetball and squash courts, the light-weight aluminum housing secures the protective tempered glass. Both mounting options keep the fixture secure within the opening and flush to the ceiling preventing interference during game play.
- Recreational to professional lumen packages
- High flux linear led modules, 80+ CRI
- 3500K, 4000K, 5000K color temperature
- Constant current LED power supplies
- Power factor > 0.9, THD < 20%, 50-60Hz
- Universal voltage 120-277v, 347v-480v available
- Impact resistant tempered glass with flush trim for true rebound
- Lens set in door frame with secured latch for easy bottom access
- Frame out or flange mount option
- All fixtures 100% bench tested prior to shipping
- Made in the USA, BAA/TAA compliant
- CSA & DLC listed, 5 year product warranty.
Dimming & Control Options
- Dim to 0%, dim to 10% or dim by line voltage
- Optional integrated 180 or 360 degree motion sensor
- Wireless control from remote, PC or handheld device
- Enocean, Zigbee or bluetooth mesh wireless protocols
- Emergency driver(s) for egress lighting
- A/B dual level array switching
What housing sizes and lumen packages does 1st Source offer?
We offer 1×4, 2×2 and 2×4 housings for courts with recessed hard ceilings. Typically (6) fixtures are required per 40’x 20’x 20′ racquetball court. The same fixture count is ideal for squash courts (32’x32’x18′). Lumen offerings include 12,000 nominal lumens for residential and recreational courts, 17,000 nominal lumens for club and competition light levels and 19,000 nominal lumens for professional or high competition play (video, etc).
What is the difference between a “frame out” and “flange mount” housing?
Our FRAME OUT option is constructed to fit inside a frame built around the fixture which sets inside the opening. The frame is typically built with 2×4 construction lumber. All of our frame out enclosures have fastener openings to secure with screw bolts to the frame.
Our FLANGE MOUNT option is constructed to fit into the existing ceiling cut out. Uni-lug swing arms sandwich the fixture flush to the opening and secure to the top of the hard ceiling.
How do I determine if a new 1st Source fixture will fit my existing cut out and if I need a frame out or flange mount housing?
Of course, the best way is to access the existing fixture for measurements and mounting style. Unfortunately, 1×4, 2×4 and 2×2 sizing is nominal and can vary slightly for each manufacturer. If access is limited or costly for surveying dimensions, 1st Source has several universal and custom fit solutions that will minimize down time. Call us at 530-887-1110 or email firstname.lastname@example.org.
What about heat created by the fixture in an enclosed recessed space?
All 1st Source LED Racquetball Court fixtures are constructed of aluminum (superior to steel for heat dissipation), and are thermally tested for proper heat sink to absorb and and disperse heat away from LED diodes and drivers. This is crucial for enclosed recessed installations.
How much space is needed to allow for heat above the fixture?
A couple of inches of clearance above the fixture is advisable. This allows for the heat transferred from the LED’s and drivers to the body to dissipate into the space above. The cooler the fixture operates, the longer the electronic components will last. All of our LED Racquetball Court fixtures have passed stringent thermal testing with CSA. The formal fixture rating is listed as a “Non-IC LED Luminaire” intended for dry/damp troffer locations.
Why is a obscured tempered glass lens so important?
Two reasons: (1) Tempered glass secures firmly into door the door frame. The lens stays seated during impact and provides true rebound during play. Plastic lenses are more pliable and tend to bend and shift within the frame during impact. (2) We use obscured-diffused tempered glass to minimize glare and disperse light evenly throughout the court.
What color temperature (CCT) is best for racquetball courts?
1st Source recommends 4000K or 5000K for best visual acuity during play.
Are 1st Source LED Racquetball Court fixtures dimmable? Controllable?
Yes, all of our LED Racquetball Court fixtures are low voltage and/or line voltage capable. Fixtures may be prepared with dimming leads to run low voltage wiring to a dimmer switch or may specified with line voltage dimming drivers. Integral control sensors may be added to the fixture to control on/off for occupancy or configure desired dimming levels.
In many cases, fixtures may also be controlled for on/off with a room ceiling sensor located at the back of the court, preferably near the entrance. 1st source also offers wireless control systems that may be controlled by a PC or hand held device.
Is emergency battery back up for egress lighting available?
Yes, emergency battery back up drivers may be integrated into our fixtures by request.
